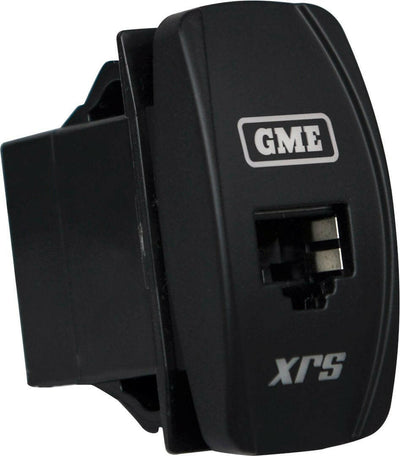

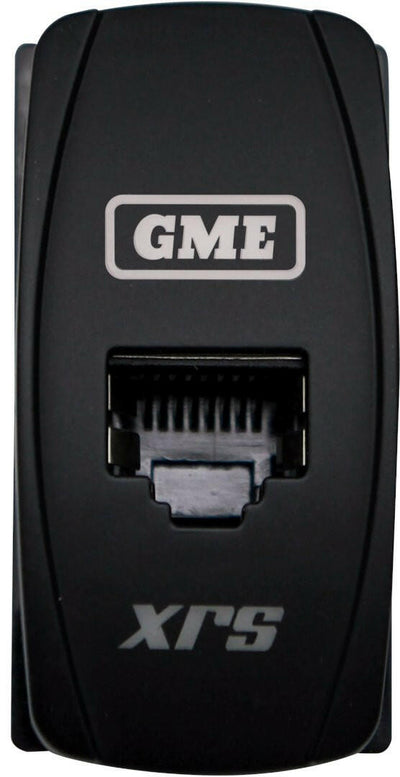

The XRS-RJ45W6 universal pass-through adaptors allow for an XRS™ Connect controller microphone to be integrated into a number locations and in a variety of vehicles, providing a neat and professional finish. Ideally suited for applications including agriculture machinery, 4WD vehicles, heavy vehicles or any fitment on a flat surface.

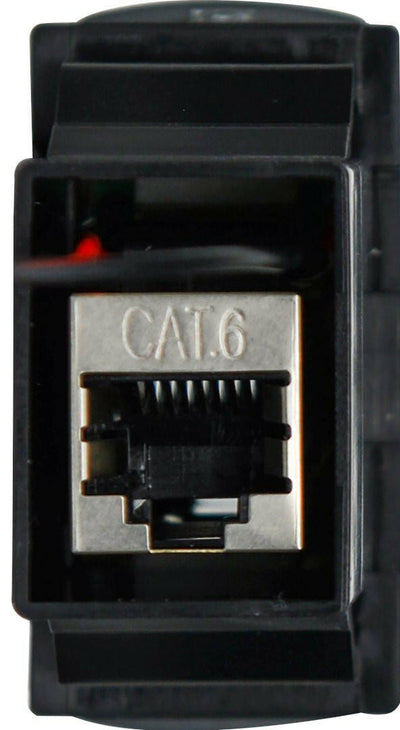

Featuring a CAT.6 compliant, fully shielded housing to minimise RF interference and dual lateral supports front and back for an extremely stable connection ensuring trouble-free communication.
The existing range of XRS-RJ45 pass-through adaptors allows for an XRS™ Connect controller microphone to be integrated directly into a range of blank OEM switch locations, providing a neat and professional finish.
Refer to the compatibility matrix for specific models.
Also compatible with other UHF CB radios using an 8 Pin RJ45 Connection.
Suits XRS™ Connect UHF CB Radios
CAT.6 Compliant, Fully-Shielded Housing
White LED Back-light
Ideally Suited for Universal Applications

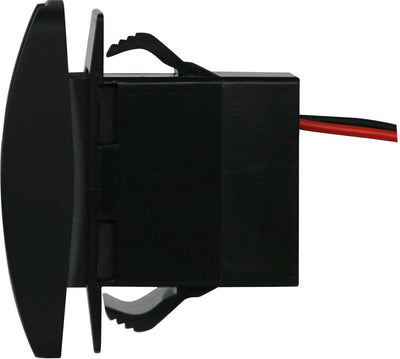

Two Wire Installation: Connect the red wire to the existing 12V dash light circuit and the black wire to the negative circuit
Total Mounting Depth Excluding Cable Exit: 26mm
Switch Cut-Out Size Required: 21mm x 37mm (with a panel thickness of 2.0mm)
In the box
